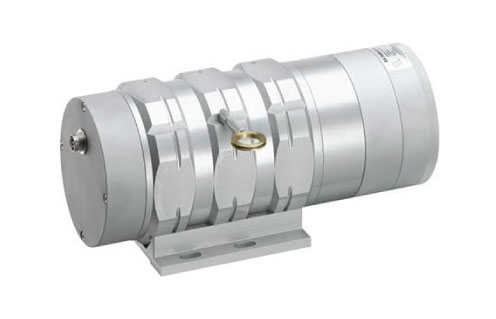

SENSATA-BEI Sensors CDS12 15000 Analog Output Encoder Position Sensors and Encoders
Up to 15 000 mm measurement range, up to 10V and 20mA output signal, CDS12 15000 Analog Output Encoder Position Sensors and Encoders
| Manufacturer | SENSATA / BEI Sensors |
|---|---|
| Category | ANALOG DRAW WIRES |
| Model / Series | CDS12 15000 |
| Current (A) | 20mA |
| Voltage (V) | 10V |
| Stock | Limited |
[inventechs_product_badges]
Technical Information
TECHNICAL SPECIFICATIONS
| FEATURES |
| Analog output draw-wire |
| Measurement range 0 up to 15 000mm |
| Measurement range | 0 up to 15 000 mm |
| Output signal | 0…10V (galvanic isolation) |
| 4…20mA current loop | |
| 4…20mA current generator (galvanic isolation) | |
| 0…20mA current generator (galvanic isolation) | |
| Resolution | Quasi infinite (depends on the operating system) |
| Material | Body and cover – aluminum (RohS) Measuring cable – Stainless steel |
| 0,90 mm | |
| Cable diameter | Precision potentiometer |
| Detection element | Male connector M16 – DIN 8 pin |
| Connection | Male connector M12 – 4 pin |
| PVC cable – 4 wires | |
| +/- 0,15% f.s. | |
| Standard linearity | +/- 0,10% f.s. (optional) |
| Protection class | IPS65 |
| Max. Velocity | 10 m/s |
| Max. Acceleration | 4 m/s2 (before cable deformation) |
| Weight | ≈ 8 kg |
| Operating temperature | -20° to +80°C |
| Storage temperature | -30° to +80°C |
