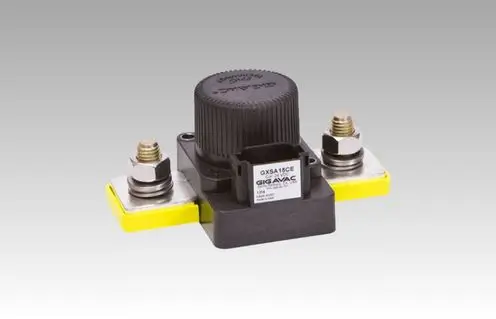

GIGAVAC GXSA15CEB DC-Contactor
800V, 400A, 24VDC, SPST-NO, rugged EPIC seal, –55°C to 175°C, 1,000,000 Cycles (Sensata Gigavac GXSA15CEB DC-Contactor)
| Manufacturer | |
|---|---|
| Product Category | |
| Model | |
| Current Rating | |
| Contact Voltage (Operating Max) | |
| Coil Voltage | |
| Stock |
- 12 months manufacturer warranty
- FREE SHIPPING FOR ORDERS ABOVE $999
$282.00
Availability: 15 in stock (can be backordered)
Technical Information
Sensata Gigavac GXSA15CEB DC-Contactor is rugged EPIC® seal rated from –55°C to 175°C and hermetically sealed. These contactors feature switching DC loads up to 800VDC, 1,000,000 mechanical life, 12ms maximum release time, and chassis-level power terminals. The GXSA15 contactors include highly efficient dual DC coils and built-in coil suppression for all DC coils. These contactors exceed IP67 and IP69K environmental standards and comply with MIL-STD-810 salt fog standards. Sensata Gigavac GXSA15CEB DC-Contactor are used in:
- Boats
- Buses
- Light Rail
- Emergency Vehicles
- Electric & Hybrid Vehicles
- Heavy Trucks and Equipment
- Mining, Oil, and Factory Automation
- Solar, Wind, and Wave power systems
- Power Management Systems for battery charging, fuel cells, and battery backup
FEATURES
- Chassis level power terminals – No need for specially routed power cables, special bus bars, or special lugs.
- Rugged EPIC® seal rated to 175°C – Reduced risk of fire or meltdown in overcurrent conditions. The same technology is used for advanced aerospace programs.
- Hermetically sealed – Designed to meet: UL1604 for Class I & II, Div 2 and Class III for use in hazardous locations, IP67 for temporary water immersion for 30 min, IP69K for pressure washing, SAE J1171 – external ignition protection, and ISO8846 for protection against ignition around flammable gases.
- High Efficiency Dual DC Coils – Very low 12 or 24 VDC continuous coil power with no EMI emissions or crosstalk on your system control power. Ideal for battery-powered systems or where low power is needed.
- Built-in coil suppression for all DC coils – Saves you engineering time and parts cost to add external coil suppression.
- Stainless steel nuts and mounting inserts, for years of corrosion-free service.
- Gigavac GXSA15CEB DC-Contactor is not position sensitive – can be.
TECHNICAL SPECIFICATIONS
| Product Type | DC-Contactors, Electromechanical | |||||||
| Product Series | GXSA15 | |||||||
| Contact Current Rating | 340 Amps – 400 Amps | |||||||
| Switching Voltage | 800 VDC | |||||||
| Coil Voltage | 24 VDC | |||||||
| Contactor/Coil Type | DC Type | |||||||
| Coil Current | 97 mA | |||||||
| Mechanical Life | 1,000,000 Cycles | |||||||
| Termination Style | Pin Connector, Stud | |||||||
| Contactor Contact Form | 1 Form X (SPST-NO-DM) | |||||||
| Features | Auxiliary Contacts, Sealed – Hermetically | |||||||
| Operating Temperature | -55°C ~ 85°C | |||||||
| IP Rating | IP67, IP69K | |||||||
| Mounting Technique | Chassis Mount | |||||||
| Operate Time | 20 ms | |||||||
| Release Time | 12 ms | |||||||
Export and Environmental Classification
| Manufacturer | SENSATA / GIGAVAC |
| Classification | HV Relay, DC Contactor |
| RoHS Compliant | Compliant  |
| ECCN | EAR99 |
| HS CODE | 853590.0089 |
| Contactor Height | 60.4 mm |
| Contactor Length | 137.2 mm |
| Contactor Width | 82.3 mm |
| Contactor Weight | 730 Gr |
| Standard Pack Size | 15 Pcs |
| Datasheet |  Click to Download |
